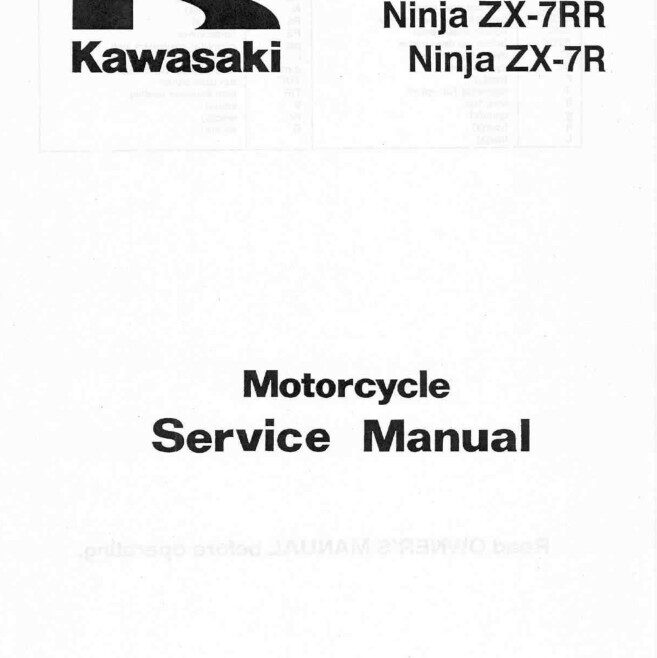

Kawasaki Ninja ZX7R 1996-2003 Service Repair Manual

Keep your legendary 750cc inline-four superbike running at peak performance. This 1996–2003 Kawasaki Ninja ZX-7R (ZX750-P Series) & ZX-7RR Complete Service & Repair Manual is the definitive technical handbook used by race mechanics, restoration specialists, and DIY owners.

Whether you are performing routine 7,500-mile valve lash inspections, rebuilding and synchronizing the quad Keihin CVKD 38mm carburetors, servicing the 43mm inverted front forks, rebuilding the back-torque slipper clutch, or rewiring the ignition harness, this digital workshop manual delivers exact factory tolerances, exploded assembly views, and clear step-by-step instructions.

🏍️ Models & Model Years Covered

• 1996–2003 Kawasaki Ninja ZX-7R (ZX750-P1, P2, P3, P4, P5, P6, P7, P8)

• 1996 Kawasaki Ninja ZX-7RR (ZX750-N1 Homologation Special)

• Covers all US, UK, European, Canadian, and Australian market specifications.

What’s Included in This Service Manual?

This complete workshop manual covers every mechanical, hydraulic, and electrical system on your motorcycle:

1. General Information & Periodic Maintenance

• Complete periodic maintenance charts and pre-ride inspection checklists

• Fluid capacities (engine oil, cooling system, fork oil levels, hydraulic brake fluid)

• Spark plug heat ranges (NGK CR9E / Denso U27ESR-N) and gap specifications

• Master chassis and engine fastener torque tables

2. 748cc 16-Valve DOHC Inline-4 Engine Overhaul

• Cylinder head removal, cam lobe wear limits, and camshaft timing mark alignment

• Valve clearance inspection and shim-under-bucket replacement charts

• Piston ring end gaps, cylinder bore wear limits, and connecting rod bearing tolerances

• Crankcase splitting, crankshaft journal runout specs, and oil pump overhaul

• Back-torque limiter (slipper clutch) teardown, clutch spring free length, and plate wear limits

• 6-speed constant mesh transmission teardown, shift drum, and shift fork inspection

3. Fuel System, Ram-Air & 4-Carburetor Bank (Keihin CVKD 38)

• Carburetor bank removal, ultrasonic cleaning, float height setup, and diaphragm inspection

• Pilot screw baseline settings and 4-gauge vacuum synchronization procedure

• Twin Ram-Air intake snorkel routing, air filter maintenance, and vacuum hose diagrams

• Fuel pump relay testing, fuel cut-off valve operation, and fuel filter replacement

4. Chassis, Suspension & Tokico 6-Piston Brakes

• Front Suspension: 43mm fully adjustable inverted (USD) fork teardown, seal replacement, and oil height tuning

• Rear Suspension: Uni-Trak rear shock linkage overhaul, nitrogen charge specs, and swingarm pivot bearing service

• Braking System: Front Tokico 6-piston and rear 2-piston caliper rebuilding, master cylinder overhauls, pad replacement, and bleeding

5. Electrical System & Wiring Schematics

• Full-color system wiring schematics with clear wire color codes

• IC Igniter (CDI unit) testing, pickup coil resistance, and ignition coil specs

• Alternator stator coil output testing and regulator/rectifier diagnostics

• Starter motor teardown, brush replacement, and starter clutch servicing

• Gauge cluster pinouts, temperature sensors, and safety interlock circuits (sidestand, clutch, neutral)

📋 Technical Specifications

❓ Frequently Asked Questions (FAQ)

How fast will I receive my download?

Instantly. As soon as payment is confirmed, an instant download button appears on your screen. You will also receive an automated email containing your permanent backup link for lifetime access.

Does this manual cover the Tokico 6-piston front brakes?

Yes. It includes dedicated teardown, seal replacement, piston cleaning, and bleeding instructions for the iconic Tokico 6-piston front calipers used on 1996–2003 ZX-7R models.

Can I open this manual on my smartphone or tablet in the garage?

Yes. The universal PDF format works seamlessly on any smartphone (iOS/Android), tablet (iPad/Galaxy Tab), laptop, or desktop computer without requiring special software.

Can I print out dirty-hand pages?

Yes. You can print just the specific pages you need (such as carburetor exploded views, valve shim charts, or torque tables) so your phone or computer stays clean while you work.

Get Your Ninja ZX-7R Track & Street Ready

Stop guessing on valve shim calculations, carburetor sync screws, and critical chassis torque specs. Download your complete workshop manual today and tackle your project with total confidence.
